Description
Qualcomm 5-core chipset Home router with powerful enterprise-class performance Always stable for ease of mind online:
Quad-core 64-bit A53 1.2 GHz CPU+ single-core 1.5 GHz NPU module, 130% more computing power *, CPU utilisation less than 10% with 128 connected devices, more powerful data processing, say goodbye to dropping connections and freezing
Independent Network Acceleration Engine Hardware-level acceleration with lower latency:
Single-core 1.5 GHz NPU (network acceleration engine), designed to process network data traffic with up to 21% higher throughput and 95% lower CPU utilisation.* Game with your friends while streaming 4K HD video.
Processor manufactured using 14 nm process technology Massive power in a small package Indispensable in a high-end WiFi6 router with low power consumption:
It is easier to integrate, consumes less power, generates 20% less heat,* and is more stable in long-term use than the 28 nm chips used in the industry
Large 256 MB memory Stably connects to 128 devices* Optimized for Mi Smart Home No freezing even with multiple connections:
You can configure a Mi smart device with the Mi Home/Xiaomi Home app when you connect it to the Internet for the first time, so there’s no need to manually enter a password
52% faster theoretical rates Full Gigabit Ethernet ports Enjoy fast WiFi6:
Up to 52% faster wireless speeds than mainstream AC1200 routers, and up to 1775 Mbps* dual-band concurrent wireless speeds with full Gigabit Ethernet ports, making full use of every megabit of bandwidth.
WiFi6 core technology OFDMA efficient transmission Reduced network congestion Lower latency and smoother when multiple devices are online:
When multiple devices need to transmit data, OFDMA technology allows the router to transmit data to eight devices in one go, reducing network latency by up to 66%.*
Four high-gain omni-directional antennas Precise debugging with a good layout Wider coverage Longer transmission distance:
4 external 5 dBi high-gain omni-directional antennas. Supports LDPC error correction algorithms to significantly enhance anti-interference capabilities and signal coverage for data transmission.
Supports Mesh networking Powerful interconnection of multiple routers The whole house is seamlessly covered with high-speed WiFi6:
5 GHz WiFi or a network cable can be used for networking; the maximum theoretical transfer rate is 1201 Mbps*, and multiple routers can connect in star or chain formation, or as a mixed wired/wireless network. If there are any changes to routing devices in the network, you can manually re-network to ensure a stable network experience
Powerful cooling for stable operation at all times:
Large aluminum heat sinks and highly conductive thermal paste are used, and the upper and lower panels have cooling channels for good air convection, ensuring reliable, long-term operation of the machine.
Product specifications:
External dimensions
247X141x180 mm
Product colour
White
Hardware configuration:
product name

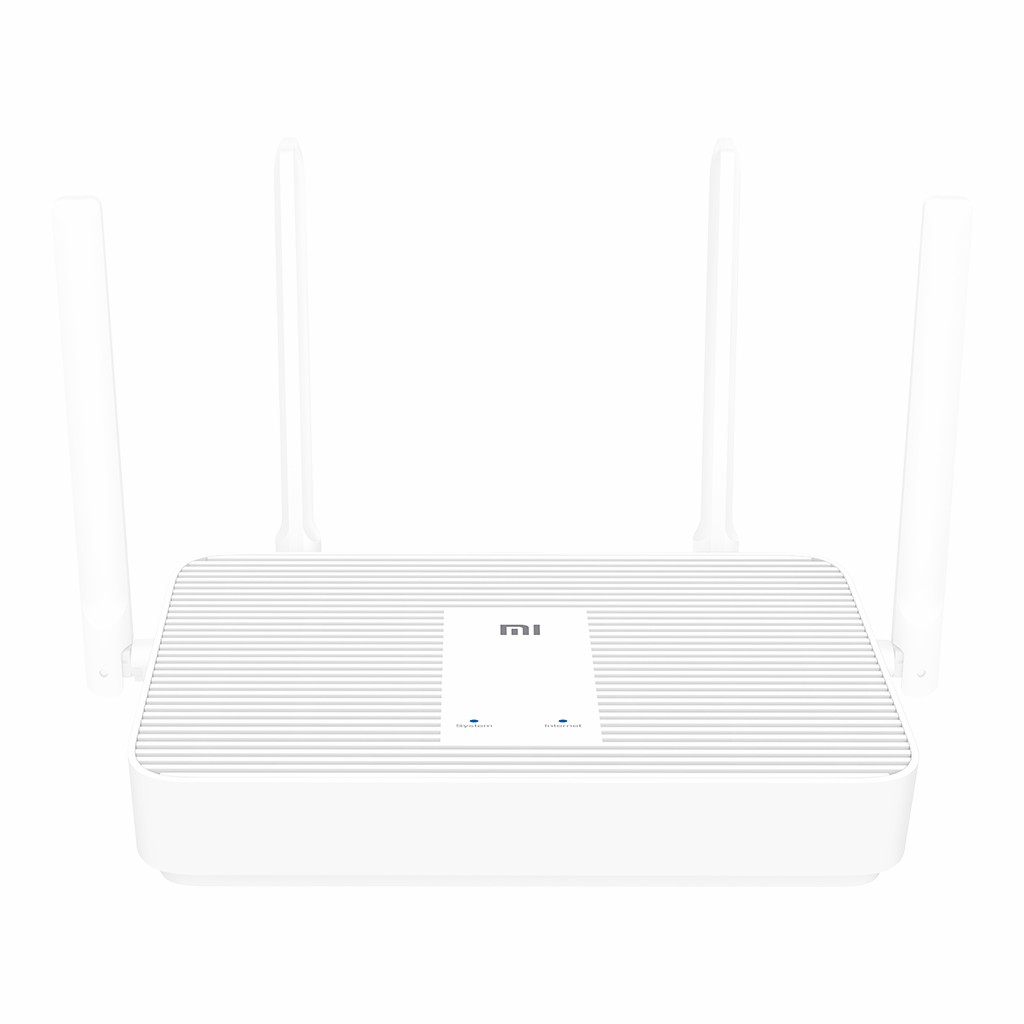

Mi Router AX1800
Processor
IPQ6000 quad-core A53 1.2 GHz CPU
Network Acceleration Engine
Single-core 1.5 GHz NPU
Memory
256 MB
2.4G Wi-Fi
2×2 (supports up to IEEE 802.11ax protocol with a theoretical maximum speed of 574 Mbps)
5G Wi-Fi
2×2 (supports up to IEEE 802.11ax protocol, theoretical maximum speed up to 1201 Mbps)
Antennas
4x external antennas
Cooling
Passive cooling
Product ports
1x 10/100/1000M adaptive WAN port (Auto MDI/MDIX)
3x 10/100/1000M adaptive LAN ports (Auto MDI/MDIX)
LED indicator
2x (System indicator x1, Internet indicator x1)
System reset button
1x
Power supply port
1x
Protocol standards
IEEE 802.11 a/b/g/n/ac/ax,
IEEE 802.3/3u/3ab
Certification standards
GB/T9254-2008;
GB4943.1-2011
Wireless specifications:
Dual band
2.5 GHz and 5 GHz
Modulation
11B:DSSS:DBPSK(1 Mbps), DQPSK(2 Mbps), CCK(5,5/11 Mbps)
11A/g:OFDM:BPSK(6/9 Mbps), QPSK(12/18 Mbps), 16QAM(24/36 Mbps),
64QAM(48/54 Mbps)
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.Rate set: MCS0-MCS15
11AC:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
Rate set: MSC0-MCS9 (supports 2 streams)
11ax:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
Rate set: MCS0-MCS11 (2 streams supported)
Software parameters:
Operating system
OpenWRT widely customisable intelligent router operating system MiWiFi ROM
WiFi Encryption
WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
wireless access control (blacklist and whitelist),
SSID hiding, smart unauthorized access prevention
Network Security:
Access control (blacklist, whitelist), guest network, DoS, SPI firewall,
IP and MAC Address binding, IP and MAC filtering
Manage applications
Supports Web, Android, iOS
Accessories:
Power supply
1x (12 V/1 A)
Operating environment:
Operating environment temperature
0°C–40°C
Operating humidity
10%–90% RH (non-condensing)
Storage temperature
-40°C–70°C
Storage humidity
5%–90% RH (non-condensing)
Package contents:
Main unit ×1
Network cable x1
Instruction manual ×1
